CBASS Daily Antenna Health Page for August 14, 2014 UTC

Generated on at September 11, 2015 at 19:49

Schedules Run

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

14-Aug-2014:01:41:22 	 14-Aug-2014:03:28:05 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 5 )
14-Aug-2014:03:28:05 	 14-Aug-2014:03:35:48 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
14-Aug-2014:03:35:48 	 14-Aug-2014:05:21:59 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 1 )
14-Aug-2014:05:21:59 	 14-Aug-2014:07:08:35 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 1 )
14-Aug-2014:07:08:35 	 14-Aug-2014:07:24:02 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
14-Aug-2014:07:24:02 	 14-Aug-2014:09:10:35 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 2 )
14-Aug-2014:09:10:35 	 14-Aug-2014:10:57:08 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 2 )
14-Aug-2014:10:57:08 	 14-Aug-2014:11:12:38 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
14-Aug-2014:11:12:38 	 14-Aug-2014:12:58:58 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 3 )
14-Aug-2014:12:58:58 	 14-Aug-2014:18:16:04 	 /home/cbass/gcpCbass/control/sch/source_raster_8x4x0.05.sch( 5h   , m42 )
14-Aug-2014:18:16:04 	 14-Aug-2014:20:02:16 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 3 )
14-Aug-2014:20:02:16 	 14-Aug-2014:20:10:59 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
14-Aug-2014:20:10:59 	 14-Aug-2014:21:57:13 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 4 )
14-Aug-2014:21:57:13 	 14-Aug-2014:23:43:43 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 4 )
14-Aug-2014:23:43:43 	 14-Aug-2014:23:44:56 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
14-Aug-2014:23:44:56 	  	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 5 )

Astronomical Calibrators Observed

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

Source 	 	 	 Number of times
-------------------------------------------
CasA 	 	 	 	 2
CygA 	 	 	 	 3
TauA 	 	 	 	 1

Flagging Report

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

                         Flag Summary
================================================================
  Number of Tracks: 4
  Total time of Data Analyzed [min]: 46.08
  Percent of total Data Flagged: 13.55
Routine Integration [min] Percent Flagged
source 47.32 10.76
elscan 0.70 0.00
calibrator 1.43 0.00
abscal 0.00 0.00
blank 0.00 0.00
skydip 0.00 0.00
radio_point_cross 4.85 0.86
radio_point_scan 0.00 0.00
opt_point 0.00 0.00
beammap 0.00 0.00
noise 0.00 0.00
noise_event 0.00 0.00
ncp 0.66 22.14
transition 18.92 25.02
Routine Average Flag %
antenna 1.64
user 0.00
time 0.00
deglitch 0.00
rfi 9.90
horizon 0.00
satellite 0.00
sun 0.00
moon 0.00
pos_user 0.00
alpha 0.00
gain 0.00
astro 0.00
stokes 0.00
total 10.07

Receiver Bias

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]
Stage 1 Stage 2 Stage 3
AMP 1
Expected Mean RMS Delta BAD
Id 8.50 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 13.90 NaN NaN NaN 0
Vd 4.50 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 12.90 NaN NaN NaN 0
Vd 4.50 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 2
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 3
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 4
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.10 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0

Pointing Report

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

There was a problem calculating the pointingMeasured pointing crosses on 1 sources
Offsets in Arcminutes
Source 	 	 Az:  	 El: 	  Azoff: 	  Eloff: 	  Sky_Off:
CygA 	 	 70.1 	 55.3  	 +1.14 	 	 1.36 	 	 1.40
CygA 	 	 292.0 	 77.7  	 +3.30 	 	 -1.60 	 	 2.78
CasA 	 	 35.2 	 56.4  	 -5.53 	 	 1.54 	 	 5.69
CasA 	 	 334.3 	 62.9  	 -3.45 	 	 0.41 	 	 3.47
TauA 	 	 272.7 	 32.6  	 -2.21 	 	 -0.07 	 	 0.74

Pointing model residuals on these sources is 2.03 arcmin
Pointing model residuals low:  model still good

Antenna Hardware Plots

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

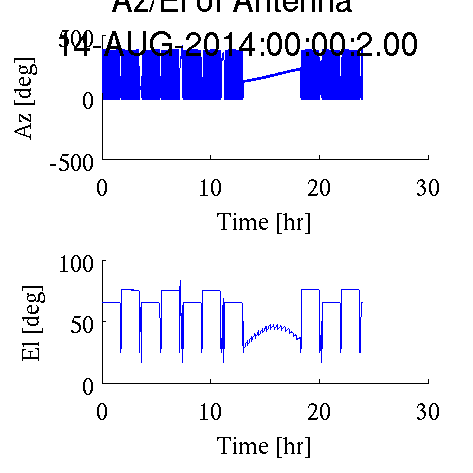

Telescope Slewing

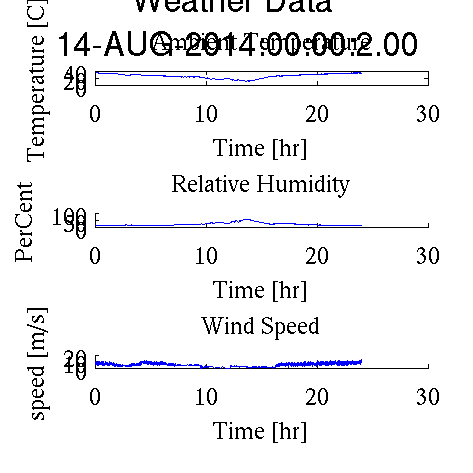

Weather Data

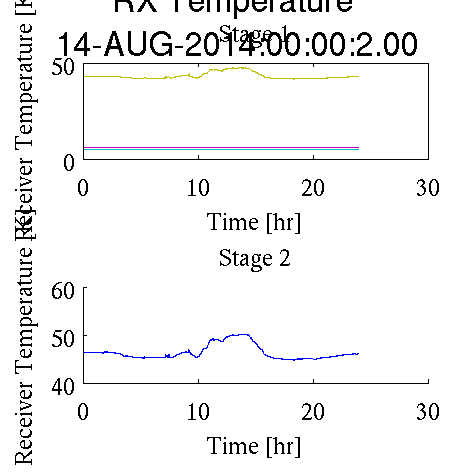

Receiver Temperature

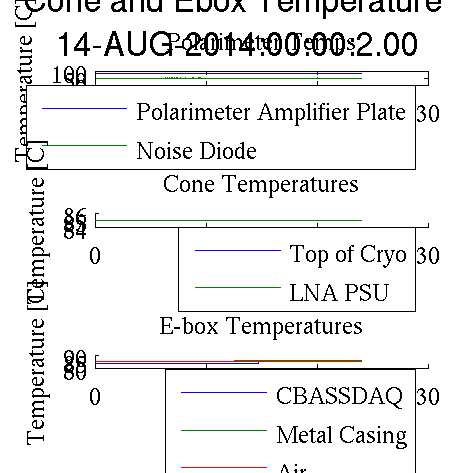

Cone/Electronics Box Temperature

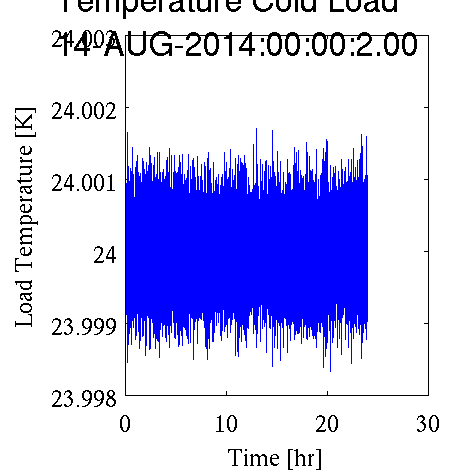

Cold Load Temperature



Antenna System Plots

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

Noise Diode Temperature



System Temperature

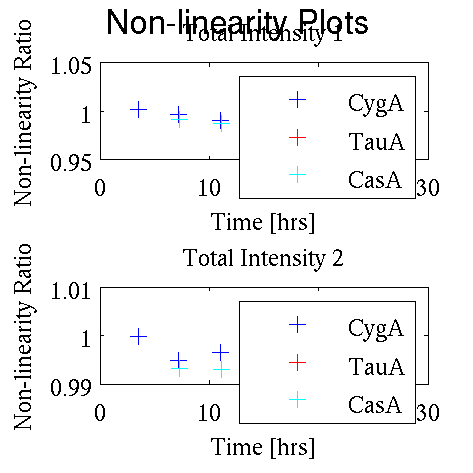

Receiver Nonlinearity



Pointing Model



Daily Maps

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

HITS, I,Q and U

Coverage



I



Q



U
