CBASS Daily Antenna Health Page for August 18, 2014 UTC

Generated on at September 06, 2015 at 08:05

Schedules Run

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

18-Aug-2014:00:21:34 	 18-Aug-2014:00:22:51 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
18-Aug-2014:00:22:51 	 18-Aug-2014:02:09:16 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 5 )
18-Aug-2014:02:09:16 	 18-Aug-2014:03:55:52 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 5 )
18-Aug-2014:03:55:52 	 18-Aug-2014:04:10:21 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
18-Aug-2014:04:10:21 	 18-Aug-2014:05:56:24 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 1 )
18-Aug-2014:05:56:24 	 18-Aug-2014:07:42:57 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 1 )
18-Aug-2014:07:42:57 	 18-Aug-2014:07:58:28 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
18-Aug-2014:07:58:28 	 18-Aug-2014:09:44:57 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 2 )
18-Aug-2014:09:44:57 	 18-Aug-2014:11:31:32 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 2 )
18-Aug-2014:11:31:32 	 18-Aug-2014:13:00:42 	 /home/cbass/gcpCbass/control/sch/coldLoadStepNorth.sch( 15m    , 21, 2, 29 )
18-Aug-2014:13:00:42 	 18-Aug-2014:13:22:33 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
18-Aug-2014:13:22:33 	 18-Aug-2014:18:48:48 	 /home/cbass/gcpCbass/control/sch/source_raster_10d_0.1.sch( 5h   , moon )
18-Aug-2014:18:48:48 	 18-Aug-2014:20:34:51 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 3 )
18-Aug-2014:20:34:51 	 18-Aug-2014:22:21:23 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 3 )
18-Aug-2014:22:21:23 	 18-Aug-2014:22:22:37 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
18-Aug-2014:22:22:37 	  	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 4 )

Astronomical Calibrators Observed

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

Source 	 	 	 Number of times
-------------------------------------------
CasA 	 	 	 	 3
CygA 	 	 	 	 2
M42 	 	 	 	 1
TauA 	 	 	 	 1

Flagging Report

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

                         Flag Summary
================================================================
  Number of Tracks: 3
  Total time of Data Analyzed [min]: 50.40
  Percent of total Data Flagged: 11.26
Routine Integration [min] Percent Flagged
source 51.77 8.97
elscan 0.82 0.10
calibrator 1.70 0.00
abscal 0.00 0.00
blank 0.00 0.00
skydip 0.00 0.00
radio_point_cross 5.68 0.31
radio_point_scan 0.00 0.00
opt_point 0.00 0.00
beammap 0.00 0.00
noise 0.00 0.00
noise_event 0.00 0.00
ncp 0.50 66.52
transition 19.10 20.79
Routine Average Flag %
antenna 0.97
user 0.00
time 0.00
deglitch 0.00
rfi 8.93
horizon 0.00
satellite 0.00
sun 0.00
moon 0.00
pos_user 0.00
alpha 0.00
gain 0.00
astro 0.00
stokes 0.00
total 8.94

Receiver Bias

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]
Stage 1 Stage 2 Stage 3
AMP 1
Expected Mean RMS Delta BAD
Id 8.50 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 13.90 NaN NaN NaN 0
Vd 4.50 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 12.90 NaN NaN NaN 0
Vd 4.50 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 2
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 3
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 4
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.10 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0

Pointing Report

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

There was a problem calculating the pointingMeasured pointing crosses on 1 sources
Offsets in Arcminutes
Source 	 	 Az:  	 El: 	  Azoff: 	  Eloff: 	  Sky_Off:
CasA 	 	 38.7 	 33.8  	 +0.56 	 	 -0.07 	 	 0.42
CygA 	 	 287.4 	 68.4  	 +1.08 	 	 0.17 	 	 0.84
CasA 	 	 27.5 	 61.7  	 -5.32 	 	 0.78 	 	 2.40
CasA 	 	 319.7 	 47.9  	 -3.44 	 	 0.15 	 	 2.50
TauA 	 	 104.6 	 52.9  	 +2.61 	 	 0.70 	 	 2.42
M42 	 	 134.0 	 34.2  	 +1.46 	 	 -0.74 	 	 1.54

Pointing model residuals on these sources is 1.50 arcmin
Pointing model residuals low:  model still good

Antenna Hardware Plots

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

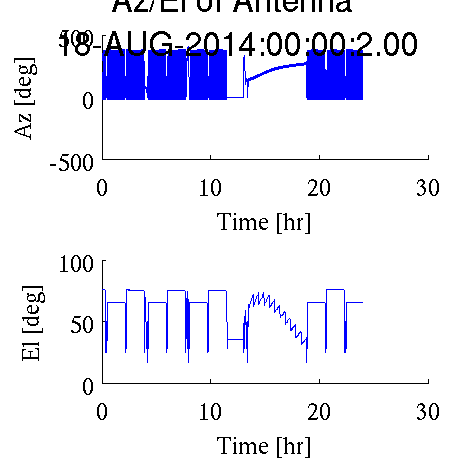

Telescope Slewing

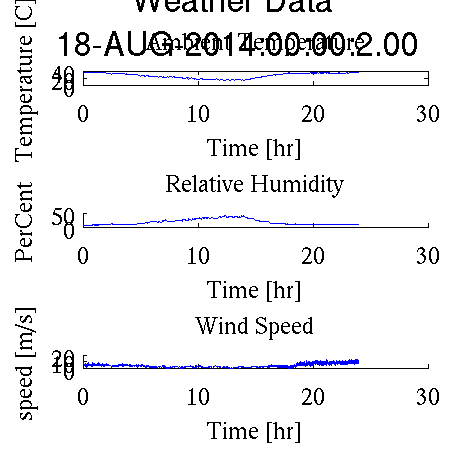

Weather Data

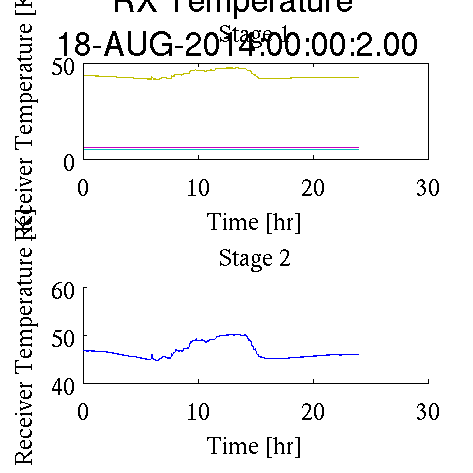

Receiver Temperature

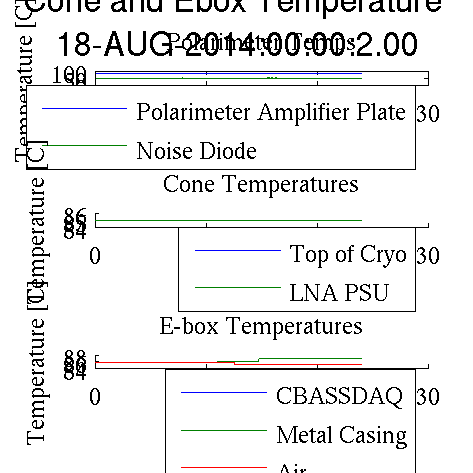

Cone/Electronics Box Temperature

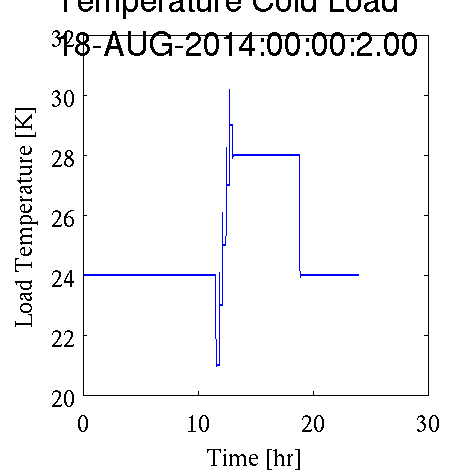

Cold Load Temperature



Antenna System Plots

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

Noise Diode Temperature



System Temperature

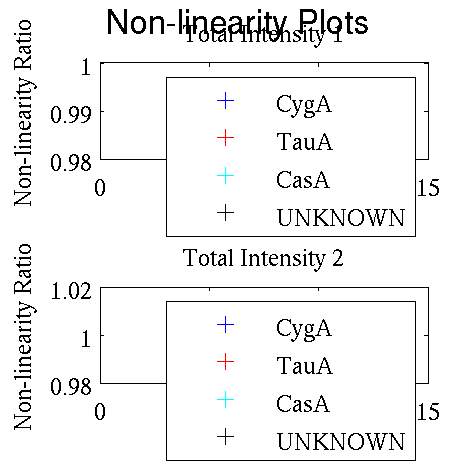

Receiver Nonlinearity



Pointing Model



Daily Maps

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

HITS, I,Q and U

Coverage



I



Q



U
