CBASS Daily Antenna Health Page for October 12, 2014 UTC

Generated on at September 12, 2015 at 05:01

Schedules Run

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

12-Oct-2014:01:43:02 	 12-Oct-2014:03:29:41 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 1 )
12-Oct-2014:03:29:41 	 12-Oct-2014:03:45:17 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
12-Oct-2014:03:45:17 	 12-Oct-2014:05:32:02 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 2 )
12-Oct-2014:05:32:02 	 12-Oct-2014:07:18:35 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 2 )
12-Oct-2014:07:18:35 	 12-Oct-2014:07:41:39 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
12-Oct-2014:07:41:39 	 12-Oct-2014:09:27:30 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 3 )
12-Oct-2014:09:27:30 	 12-Oct-2014:11:14:00 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 3 )
12-Oct-2014:11:14:00 	 12-Oct-2014:11:36:26 	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch
12-Oct-2014:11:36:26 	 12-Oct-2014:13:22:07 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 30:00:00, 4 )
12-Oct-2014:13:22:07 	 12-Oct-2014:15:08:42 	 /home/cbass/gcpCbass/control/sch/cbass_survey_5speed.sch( 40:00:00, 4 )
12-Oct-2014:15:08:42 	  	 /home/cbass/gcpCbass/control/sch/scan_calibrators_2013.sch

Astronomical Calibrators Observed

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

Source 	 	 	 Number of times
-------------------------------------------
CasA 	 	 	 	 3
CygA 	 	 	 	 2
M42 	 	 	 	 1
TauA 	 	 	 	 2

Flagging Report

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

                         Flag Summary
================================================================
  Number of Tracks: 3
  Total time of Data Analyzed [min]: 60.48
  Percent of total Data Flagged: 20.71
Routine Integration [min] Percent Flagged
source 61.02 19.91
elscan 0.93 25.00
calibrator 1.90 0.23
abscal 0.00 0.00
blank 0.00 0.00
skydip 0.00 0.00
radio_point_cross 6.48 5.82
radio_point_scan 0.00 0.00
opt_point 0.00 0.00
beammap 0.00 0.00
noise 0.00 0.00
noise_event 0.00 0.00
ncp 0.50 19.32
transition 23.18 28.53
Routine Average Flag %
antenna 1.43
user 0.00
time 0.00
deglitch 0.00
rfi 18.76
horizon 0.00
satellite 0.00
sun 0.00
moon 0.00
pos_user 0.00
alpha 0.00
gain 0.00
astro 0.00
stokes 0.00
total 19.29

Receiver Bias

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]
Stage 1 Stage 2 Stage 3
AMP 1
Expected Mean RMS Delta BAD
Id 8.50 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 13.90 NaN NaN NaN 0
Vd 4.50 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 12.90 NaN NaN NaN 0
Vd 4.50 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 2
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 3
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
AMP 4
Expected Mean RMS Delta BAD
Id 8.00 NaN NaN NaN 0
Vd 2.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.00 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0
Expected Mean RMS Delta BAD
Id 16.10 NaN NaN NaN 0
Vd 4.00 NaN NaN NaN 0
Vg <0 0.00 0.00 NA 0

Pointing Report

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

There was a problem calculating the pointingMeasured pointing crosses on 1 sources
Offsets in Arcminutes
Source 	 	 Az:  	 El: 	  Azoff: 	  Eloff: 	  Sky_Off:
CygA 	 	 289.6 	 75.3  	 +2.13 	 	 -1.21 	 	 2.44
CasA 	 	 33.5 	 57.9  	 -7.16 	 	 1.41 	 	 2.05
CygA 	 	 298.0 	 32.9  	 -2.48 	 	 -1.27 	 	 1.29
CasA 	 	 331.5 	 61.7  	 -3.20 	 	 0.51 	 	 1.41
TauA 	 	 84.7 	 29.4  	 +2.05 	 	 -0.92 	 	 1.33
CasA 	 	 321.0 	 33.8  	 -4.24 	 	 -0.63 	 	 3.05
TauA 	 	 147.9 	 70.9  	 +2.60 	 	 -0.36 	 	 0.62
M42 	 	 168.0 	 45.0  	 -0.80 	 	 0.41 	 	 0.57

Pointing model residuals on these sources is 2.08 arcmin
Pointing model residuals low:  model still good

Antenna Hardware Plots

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

Telescope Slewing

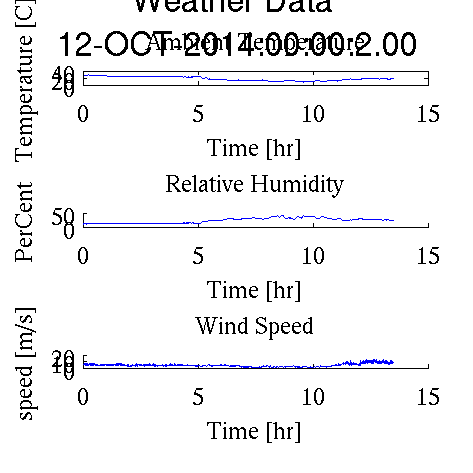

Weather Data

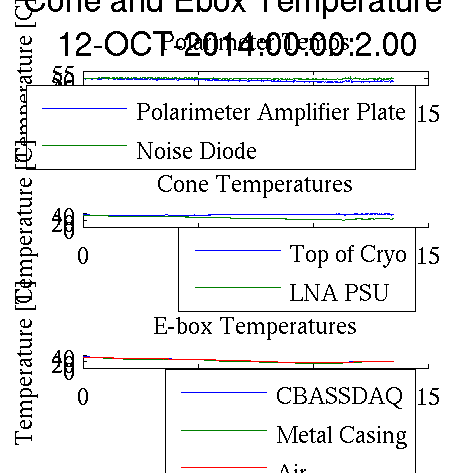

Receiver Temperature



Cone/Electronics Box Temperature

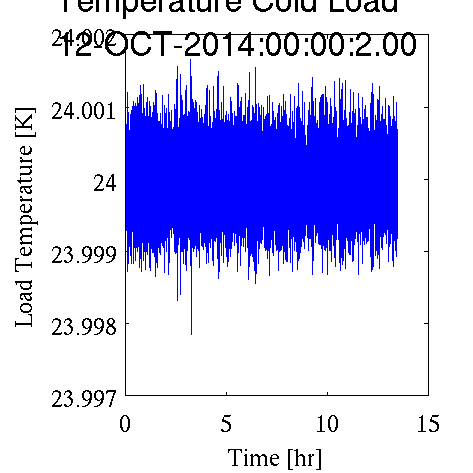

Cold Load Temperature



Antenna System Plots

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

Noise Diode Temperature



System Temperature

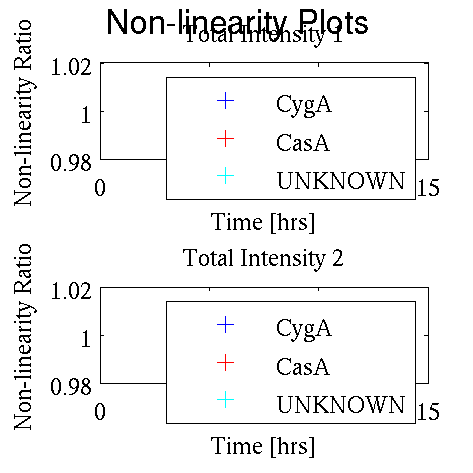

Receiver Nonlinearity



Pointing Model



Daily Maps

[Top] [Schedules] [Calibrators][Flagging] [Receiver Bias][Pointing] [Hardware Plots][System Plots][Daily Maps]

HITS, I,Q and U

Coverage



I



Q



U
