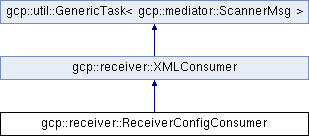

Inheritance diagram for gcp::receiver::ReceiverConfigConsumer:

Classes
struct	Board

Public Types
enum	Command { TYPE_NONE, TYPE_GETBOARDS, TYPE_GETSQUIDS, TYPE_GETSEQID, TYPE_GETREGS }

enum	SquidId { SQUID_NONE = 0x0, SQUID_A = 0x1, SQUID_B = 0x2 }

Public Member Functions
	ReceiverConfigConsumer (gcp::mediator::Scanner *scanner, std::string host="localhost", unsigned short port=5207, bool send_connect_request=true)

virtual	~ReceiverConfigConsumer ()

bool	getData ()

bool	requestBoards ()

bool	ReceiverConfigConsumer::requestSquids ()

bool	ReceiverConfigConsumer::requestHardwareStatus ()

bool	ReceiverConfigConsumer::requestHardwareConfiguration ()

bool	sendCommand (MuxReadout::HardwareManagerClient::Cmd *cmd, Command type)

bool	ReceiverConfigConsumer::readResponse ()

MuxReadout::HardwareManagerClient::Cmd *	getLastSentCommand ()

bool	readBoardInfo (MuxReadout::HardwareManagerClient::Cmd *cmd)

bool	readSquidInfo (MuxReadout::HardwareManagerClient::Cmd *cmd)

bool	readHardwareStatus (MuxReadout::HardwareManagerClient::Cmd *cmd)

bool	readHardwareConfiguration (MuxReadout::HardwareManagerClient::Cmd *cmd)

void	reportError ()

void	reportSuccess ()

void	serviceMsgQ ()

Public Member Functions inherited from gcp::receiver::XMLConsumer
	XMLConsumer (gcp::receiver::XMLDataFrameManager dataFrame, gcp::mediator::Scanner scanner, std::string regMapName, std::string host="localhost", unsigned short port=5207, bool send_connect_request=true)

virtual	~XMLConsumer ()

void	sendDispatchDataFrameMsg ()

Public Member Functions inherited from gcp::util::GenericTask< gcp::mediator::ScannerMsg >
void	sendRestartMsg ()

void	sendStopMsg ()

void	sendHeartBeatMsg ()

virtual void	fwdTaskMsg (gcp::mediator::ScannerMsg *msg)

Additional Inherited Members
Static Public Attributes inherited from gcp::receiver::XMLConsumer
static const unsigned	nConnAttemptBeforeReport_ = 30

Protected Member Functions inherited from gcp::receiver::XMLConsumer
virtual void	processMsg (gcp::mediator::ScannerMsg *msg)

virtual bool	checkClient ()

void	registerError ()

Protected Member Functions inherited from gcp::util::GenericTask< gcp::mediator::ScannerMsg >
	GenericTask ()

	GenericTask (Thread *thread)

virtual	~GenericTask ()

void	sendTaskMsg (gcp::mediator::ScannerMsg *msg)

void	startThreads (void *arg)

void	startThread (void *arg, unsigned order)

unsigned	getMinStartOrder ()

bool	threadsNeedStarting ()

void	cancelThreads ()

void	cancelThread (unsigned order)

unsigned	getMinCancelOrder ()

bool	threadsNeedCancelling ()

void	pingThreads (void *arg)

void	raise (std::string name, int sigNo)

Thread *	getThread (std::string name)

bool	threadsAreRunning ()

void	shutdownConnection (int fd)

virtual void	restart (void)

virtual void	run (void)

virtual void	processTaskMsg (bool *stop)

virtual void	respondToHeartBeat ()

virtual void	installTimer (gcp::mediator::ScannerMsg *msg)

virtual void	installSignal (gcp::mediator::ScannerMsg *msg)

virtual void	enableTimer (gcp::mediator::ScannerMsg *msg)

virtual void	addHandler (gcp::mediator::ScannerMsg *msg)

void	stepCommands ()

Protected Attributes inherited from gcp::receiver::XMLConsumer
bool	commandPending_

unsigned	nConnAttempt_

gcp::mediator::Scanner *	parent_

std::string	regMapName_

std::string	host_

unsigned short	port_

bool	send_connect_request_

bool	connected_

int	clientFd_

gcp::receiver::XMLDataFrameManager *	dataFrame_

MuxReadout::HardwareManagerClient *	client_

Protected Attributes inherited from gcp::util::GenericTask< gcp::mediator::ScannerMsg >
Thread *	thread_

std::vector< Thread * >	threads_

PipeQ< gcp::mediator::ScannerMsg >	msgq_

gcp::util::FdSet	fdSet_

std::vector< Command * >	commands_

struct timeval *	timeOut_

TimeVal	commandTimeOut_

Constructor & Destructor Documentation

ReceiverConfigConsumer::ReceiverConfigConsumer	(	gcp::mediator::Scanner *	scanner,
		std::string	host = `"localhost"`,
		unsigned short	port = `5207`,
		bool	send_connect_request = `true`
	)

Constructor.

....................................................................... Constructor.

ReceiverConfigConsumer::~ReceiverConfigConsumer ( )

virtual

....................................................................... Destructor.

Member Function Documentation

bool ReceiverConfigConsumer::getData ( )

virtual

....................................................................... Get the next set of data from the server

Reimplemented from gcp::receiver::XMLConsumer.

MuxReadout::HardwareManagerClient::Cmd * ReceiverConfigConsumer::getLastSentCommand ( )

....................................................................... Return the last command we sent

void ReceiverConfigConsumer::reportError ( )

virtual

....................................................................... Report an error

Reimplemented from gcp::receiver::XMLConsumer.

void ReceiverConfigConsumer::reportSuccess ( )

virtual

....................................................................... Report a successfull connection

Reimplemented from gcp::receiver::XMLConsumer.

bool ReceiverConfigConsumer::requestBoards ( )

....................................................................... Request the list of boards

bool ReceiverConfigConsumer::sendCommand	(	MuxReadout::HardwareManagerClient::Cmd *	cmd,
		Command	type
	)

....................................................................... Generic method to send a command to the HWM

void ReceiverConfigConsumer::serviceMsgQ ( void )

virtual

....................................................................... Service our message queue.

Reimplemented from gcp::util::GenericTask< gcp::mediator::ScannerMsg >.

The documentation for this class was generated from the following files:

gcpCbass/receiver/cbass/ReceiverConfigConsumer.h
gcpCbass/receiver/cbass/ReceiverConfigConsumer.cc
