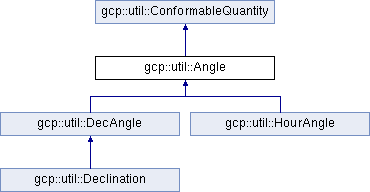

Inheritance diagram for gcp::util::Angle:

Classes
class	ArcMinutes

class	ArcSec

class	Degrees

class	MilliArcSec

class	Radians

Public Member Functions
	Angle (bool modulo=false)

	Angle (std::string degrees, bool modulo=false)

	Angle (const Radians &units, double radians, bool modulo=false)

	Angle (const Degrees &units, double degrees, bool modulo=false)

	Angle (const MilliArcSec &units, double mas, bool modulo=false)

	Angle (const ArcSec &units, double as, bool modulo=false)

	Angle (const ArcMinutes &units, double am, bool modulo=false)

	Angle (Angle &angle)

	Angle (const Angle &angle)

void	operator= (Angle &angle)

void	operator= (const Angle &angle)

virtual	~Angle ()

void	setRadians (double radians)

void	setDegrees (double degrees)

void	setDegrees (double degrees, double arcmin, double arcsec)

void	setArcMinutes (double am)

void	setMas (double mas)

void	setArcSec (double as)

void	setDegrees (std::string degrees)

virtual void	addRadians (double radians)

virtual void	addDegrees (double degrees)

virtual void	addDegrees (std::string degrees)

double	radians ()

double	degrees ()

double	arcsec ()

double	arcmin ()

double	mas ()

std::string	strDegrees ()

Angle	operator+ (Angle &angle)

Angle	operator- (Angle &angle)

void	operator/= (unsigned uval)

Angle	operator/ (unsigned uval)

bool	operator> (Angle &angle)

bool	operator> (const Angle &angle)

bool	operator>= (Angle &angle)

bool	operator< (Angle &angle)

bool	operator< (const Angle &angle)

bool	operator<= (Angle &angle)

void	initialize ()

Public Member Functions inherited from gcp::util::ConformableQuantity
	ConformableQuantity ()

virtual	~ConformableQuantity ()

bool	isFinite ()

Static Public Member Functions
static double	sexagesimalToDouble (std::string valStr)

static std::string	doubleToSexagesimal (double val)

Static Public Attributes
static const double	pi_ = M_PI

static const double	twoPi_ = 2*M_PI

static const double	degPerRad_ = 180/M_PI

static const double	arcSecPerDegree_ = 3600

static const double	masPerDegree_ = Angle::arcSecPerDegree_ * 1000

static const double	arcSecPerRad_ = 206265

static const double	arcMinPerRad_ = 60 * Angle::degPerRad_

static const double	masPerRad_ = Angle::masPerDegree_ * Angle::degPerRad_

Protected Member Functions
	Angle (double radians, bool modulo)

Protected Member Functions inherited from gcp::util::ConformableQuantity
void	setFinite (bool finite)

Protected Attributes
double	radians_

bool	modulo_

Protected Attributes inherited from gcp::util::ConformableQuantity
bool	finite_

Friends
std::ostream &	operator<< (std::ostream &os, Angle &angle)

Constructor & Destructor Documentation

Angle::Angle ( bool modulo = false )

Public constructor with no value initialization

....................................................................... Constructor.

Angle::Angle	(	std::string	degrees,
		bool	modulo = `false`
	)

Unambiguous contructor for degree strings

Angle::Angle	(	const Radians &	units,
		double	radians,
		bool	modulo = `false`
	)

Constructors with unit specifications

....................................................................... Constructor.

Angle::~Angle ( )

virtual

Destructor.

....................................................................... Destructor.

Member Function Documentation

void Angle::addDegrees ( double degrees )

virtual

....................................................................... Add to the contents of this object

void Angle::addDegrees ( std::string degrees )

virtual

....................................................................... Set the contents of this object

void Angle::addRadians ( double radians )

virtual

Add to the angle

....................................................................... Add to the contents of this object

Reimplemented in gcp::util::Declination.

std::string Angle::doubleToSexagesimal ( double val )

static

Convert a double to a sexagesimal string

....................................................................... Convert a double to a sexagesimal string

Angle Angle::operator+ ( Angle & angle )

Add two Angles

....................................................................... Addition operator for Angle.

Angle Angle::operator- ( Angle & angle )

Subtract two Angles

....................................................................... Subtraction operator for Angle.

Angle Angle::operator/ ( unsigned uval )

Divide an angle by an integer

void Angle::operator/= ( unsigned uval )

Divide an angle by an integer

bool Angle::operator> ( Angle & angle )

Compare two Angles

....................................................................... Comparison operators

double gcp::util::Angle::radians ( )

inline

Get the angle

void Angle::setArcMinutes ( double am )

....................................................................... Set the contents of this object in arcminutes

void Angle::setArcSec ( double as )

....................................................................... Set the contents of this object in arcseconds

void Angle::setDegrees ( double degrees )

....................................................................... Set the contents of this object

void Angle::setDegrees ( std::string degrees )

....................................................................... Set the contents of this object

void Angle::setMas ( double mas )

....................................................................... Set the contents of this object

void Angle::setRadians ( double radians )

Set the angle

....................................................................... Set the contents of this object

double Angle::sexagesimalToDouble ( std::string valStr )

static

Convert a sexagesimal string to a double representation

....................................................................... Convert a sexagesimal string to a double representation

std::string Angle::strDegrees ( )

....................................................................... Get the contents of this object

Friends And Related Function Documentation

std::ostream& operator<<	(	std::ostream &	os,
		Angle &	angle
	)

friend

Allows cout << Angle

The documentation for this class was generated from the following files:

gcpCbass/util/common/Angle.h
gcpCbass/util/common/Angle.cc
