gcp::util::GenericMasterTaskMsg Class Reference

#include <GenericMasterTaskMsg.h>

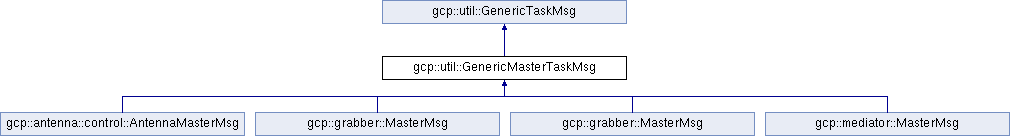

Inheritance diagram for gcp::util::GenericMasterTaskMsg:

Public Types
enum	GenericMasterMsgType {   ADD_HANDLER = GenericTaskMsg::LAST+1, ENABLE_TIMER, INSTALL_TIMER, INSTALL_SIGNAL,   TASK_SPECIFIC }
Public Types inherited from gcp::util::GenericTaskMsg
enum	GenericMsgType {   HEARTBEAT, STOP, RESTART, TASK_SPECIFIC,   LAST }

Public Member Functions
void	packInstallTimerMsg (std::string name, int sigNo, unsigned long initSec, unsigned long initNsec, unsigned long intervalSec, unsigned long intervalNsec, SIGNALTASK_HANDLER_FN(*handler))
void	packInstallTimerMsg (std::string name, int sigNo, unsigned long intervalSec, unsigned long intervalNsec, SIGNALTASK_HANDLER_FN(*handler))
void	packInstallSignalMsg (int sigNo, SIGNALTASK_HANDLER_FN(*handler))
void	packEnableTimerMsg (std::string name, bool enable)
void	packAddHandlerMsg (std::string name, SIGNALTASK_HANDLER_FN(*handler), bool add)

Public Attributes
union {
struct {
char   name [SIGNAL_NAME_LEN+1]
int   sigNo
unsigned long   initSec
unsigned long   initNsec
unsigned long   intervalSec
unsigned long   intervalNsec
SIGNALTASK_HANDLER_FN *   handler
}   installTimer
struct {
int   sigNo
SIGNALTASK_HANDLER_FN *   handler
void *   args
}   installSignal
struct {
char   name [SIGNAL_NAME_LEN+1]
bool   enable
}   enableTimer
struct {
char   name [SIGNAL_NAME_LEN+1]
SIGNALTASK_HANDLER_FN *   handler
void *   args
bool   add
}   addHandler
}	genericMasterBody
Public Attributes inherited from gcp::util::GenericTaskMsg
GenericMsgType	genericMsgType_

Detailed Description

A class to encapsulate message types for a generic task.

Classes which extend from this class should simply add whatever members are required to process additional task-specific messages, for instance a union of task-specific messages.

NB: There is no explicit constructor for this class, since the compiler won't allow classes with constructors to be included as members of unions. This means that we cannot construct unions using objects which inherit from GenericMasterTaskMsg unless they also don't have constructors.

Member Enumeration Documentation

enum gcp::util::GenericMasterTaskMsg::GenericMasterMsgType

Enumerate supported generic message types.

Member Function Documentation

void gcp::util::GenericMasterTaskMsg::packAddHandlerMsg ( std::string  name, SIGNALTASK_HANDLER_FN *  handler, bool  add  )

inline

Pack a message to enable/disable a timer.

void gcp::util::GenericMasterTaskMsg::packEnableTimerMsg ( std::string  name, bool  enable  )

inline

Pack a message to enable/disable a timer.

void gcp::util::GenericMasterTaskMsg::packInstallSignalMsg ( int  sigNo, SIGNALTASK_HANDLER_FN *  handler  )

inline

Pack a message to install a signal.

void gcp::util::GenericMasterTaskMsg::packInstallTimerMsg ( std::string  name, int  sigNo, unsigned long  initSec, unsigned long  initNsec, unsigned long  intervalSec, unsigned long  intervalNsec, SIGNALTASK_HANDLER_FN *  handler  )

inline

Pack a message to install a timer. Allows separately setting the initial delay and the interval

void gcp::util::GenericMasterTaskMsg::packInstallTimerMsg ( std::string  name, int  sigNo, unsigned long  intervalSec, unsigned long  intervalNsec, SIGNALTASK_HANDLER_FN *  handler  )

inline

Pack a message to install a timer. Sets the initial delay and the interval to the same.

Member Data Documentation

union { ... } gcp::util::GenericMasterTaskMsg::genericMasterBody

A message body

---

The documentation for this class was generated from the following file:

• gcpCbass/util/common/GenericMasterTaskMsg.h
