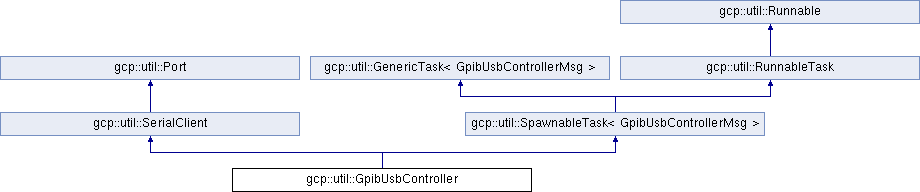

Inheritance diagram for gcp::util::GpibUsbController:

Public Types
enum	Mode { MODE_CONTROLLER = 0, MODE_DEVICE = 1 }

enum	{ EOS_CRLF = 0, EOS_CR = 1, EOS_LF = 2, EOS_NONE = 3 }

Public Member Functions
	GpibUsbController (bool doSpawn=false)

	GpibUsbController (std::string port, bool doSpawn=false)

virtual	~GpibUsbController ()

void	stop ()

int	connect ()

int	connectAndClear ()

void	setAuto (bool doAuto)

void	setMode (Mode mode)

virtual void	setAddress (unsigned address)

virtual unsigned	getAddress ()

void	setEoi (bool sendEoi)

std::string	getEoi ()

std::string	getVersion ()

std::string	getHelp ()

void	setEos (unsigned)

std::string	getEos ()

void	clearInterface ()

void	resetController ()

void	enableEot (bool enable)

void	setEotChar (char eot)

std::string	getDevice ()

void	resetDevice ()

void	clearDevice ()

void	clearDeviceInterface ()

std::string	getSelfTest ()

void	wait ()

Public Member Functions inherited from gcp::util::SerialClient
	SerialClient (std::string port="/dev/ttyS0", int baudRate=9600, bool canonical=false, bool sevenBit=false)

virtual	~SerialClient ()

void	setPort (std::string port)

void	setBaudRate (int baudRate)

int	connect ()

void	disconnect ()

std::string	portName ()

void	setFd (int fd)

Public Member Functions inherited from gcp::util::Port
	Port (int fd=-1)

virtual	~Port ()

int	getFd ()

void	writeString (std::string &message, int fd=-1)

void	writeBytes (Vector< unsigned char > &buffer)

unsigned int	readBytes (unsigned char *message, int fd=-1)

unsigned int	readBytes (Vector< unsigned char > &buffer)

unsigned char	getNextByte ()

std::string	readString (int fd=-1)

bool	concatenateString (std::ostringstream &os, int fd=-1, bool cont=true)

void	concatenateChar (std::ostringstream &os, int fd=-1)

int	getNbyte (int fd=-1)

void	terminateAt (std::string strip)

void	strip (std::string strip)

void	dontStrip (std::string strip)

void	stripUnprintable (bool strip)

void	append (std::string append)

void	setNoBuf ()

void	setLineBuf ()

Public Member Functions inherited from gcp::util::SpawnableTask< GpibUsbControllerMsg >
	SpawnableTask (bool spawn)

virtual	~SpawnableTask ()

Public Member Functions inherited from gcp::util::GenericTask< GpibUsbControllerMsg >
void	sendRestartMsg ()

void	sendStopMsg ()

void	sendHeartBeatMsg ()

virtual void	fwdTaskMsg (GpibUsbControllerMsg *msg)

Public Member Functions inherited from gcp::util::RunnableTask
	RunnableTask (bool spawnThread)

virtual	~RunnableTask ()

Public Member Functions inherited from gcp::util::Runnable
	Runnable (bool spawnThread, RUN_FN(*runFn))

	Runnable (bool spawnThread, RUN_FN(*runFn), int priority)

virtual	~Runnable ()

void	blockForever ()

void	spawn ()

Static Public Member Functions
static	GPIB_RESPONSE_HANDLER (checkString)

Static Public Member Functions inherited from gcp::util::Port
static void	writeBytes (Vector< unsigned char > &buffer, int fd)

Static Public Member Functions inherited from gcp::util::RunnableTask
static	RUN_FN (runFn)

Static Public Member Functions inherited from gcp::util::Runnable
static	THREAD_START (startUp)

Public Attributes
std::ostringstream	response_

void *	retVal_

Protected Types
enum	Receiver { DEVICE = 0, CONTROLLER = 1 }

Protected Member Functions
void	initialize (bool doSpawn)

void	serviceMsgQ (void)

void	processMsg (GpibUsbControllerMsg *msg)

void	suspendProcessingMessages (bool suspend)

void	watchForResponse (bool watch)

void	respondToTimeOut ()

void	readResponse ()

void	respondToUnexpectedInput ()

void	sendDeviceCommand (std::string cmd, bool expectsResponse=false, GPIB_RESPONSE_HANDLER(handler)=0, bool block=false, void retVal=0)

void	sendControllerCommand (std::string cmd, bool expectsResponse=false, GPIB_RESPONSE_HANDLER(handler)=0, bool block=false, void retVal=0)

virtual void	sendCommand (std::string cmd, Receiver rx, bool expectsResponse=false, GPIB_RESPONSE_HANDLER(handler)=0, bool block=false, void retVal=0)

void	executeCommand (std::string cmd, bool expectsResponse, GPIB_RESPONSE_HANDLER(handler), CondVar condVar, void *retVal)

void	executeConnect (void *retVal)

Protected Member Functions inherited from gcp::util::SpawnableTask< GpibUsbControllerMsg >
void	run ()

Protected Member Functions inherited from gcp::util::GenericTask< GpibUsbControllerMsg >
	GenericTask ()

	GenericTask (Thread *thread)

virtual	~GenericTask ()

void	sendTaskMsg (GpibUsbControllerMsg *msg)

void	startThreads (void *arg)

void	startThread (void *arg, unsigned order)

unsigned	getMinStartOrder ()

bool	threadsNeedStarting ()

void	cancelThreads ()

void	cancelThread (unsigned order)

unsigned	getMinCancelOrder ()

bool	threadsNeedCancelling ()

void	pingThreads (void *arg)

void	raise (std::string name, int sigNo)

Thread *	getThread (std::string name)

bool	threadsAreRunning ()

void	shutdownConnection (int fd)

virtual void	restart (void)

virtual void	processTaskMsg (bool *stop)

virtual void	respondToHeartBeat ()

virtual void	installTimer (GpibUsbControllerMsg *msg)

virtual void	installSignal (GpibUsbControllerMsg *msg)

virtual void	enableTimer (GpibUsbControllerMsg *msg)

virtual void	addHandler (GpibUsbControllerMsg *msg)

void	stepCommands ()

Protected Member Functions inherited from gcp::util::Runnable
virtual void	broadcastReady ()

void	spawn (void *arg)

Static Protected Member Functions
static	GPIB_RESPONSE_HANDLER (checkHandler)

static	GPIB_RESPONSE_HANDLER (checkAddress)

static	GPIB_RESPONSE_HANDLER (checkDevice)

static	GPIB_RESPONSE_HANDLER (checkCompletion)

Protected Attributes
TimeOut	cmdTimeOut_

std::string	devName_

std::string	lastCmd_

bool	expectingResponse_

GPIB_RESPONSE_HANDLER *	responseHandler_

CondVar *	condVar_

bool	eotEnabled_

Protected Attributes inherited from gcp::util::Port
int	fd_

Protected Attributes inherited from gcp::util::GenericTask< GpibUsbControllerMsg >
Thread *	thread_

std::vector< Thread * >	threads_

PipeQ< GpibUsbControllerMsg >	msgq_

gcp::util::FdSet	fdSet_

std::vector< Command * >	commands_

struct timeval *	timeOut_

TimeVal	commandTimeOut_

Protected Attributes inherited from gcp::util::Runnable
Thread *	spawnedThread_

bool	spawned_

RUN_FN *	runFn_

Friends
class	GpibUsbDevice

Additional Inherited Members
Static Public Attributes inherited from gcp::util::Port
static const unsigned int	MAX_RCV_BUFFER = 300

static const unsigned	TELNET_PORT_NO = 23

Constructor & Destructor Documentation

GpibUsbController::GpibUsbController ( bool doSpawn = false )

....................................................................... Constructor.

GpibUsbController::GpibUsbController	(	std::string	port,
		bool	doSpawn = `false`
	)

....................................................................... Constructor.

GpibUsbController::~GpibUsbController ( )

virtual

....................................................................... Destructor.

Member Function Documentation

void GpibUsbController::clearInterface ( )

....................................................................... Clear the interfacae

int GpibUsbController::connect ( )

virtual

....................................................................... Send a message to connect to the serial port

Reimplemented from gcp::util::Port.

int GpibUsbController::connectAndClear ( )

....................................................................... Connect to the controller, and send a message to clear the interface

void GpibUsbController::executeCommand	(	std::string	cmd,
		bool	expectsResponse,
		GPIB_RESPONSE_HANDLER *	handler,
		CondVar *	condVar,
		void *	retVal
	)

protected

....................................................................... Execute a command

void GpibUsbController::executeConnect ( void * retVal )

protected

....................................................................... Open the psuedo-serial port

unsigned GpibUsbController::getAddress ( )

virtual

....................................................................... Get the GPIB address of the controller

std::string GpibUsbController::getDevice ( )

....................................................................... Get the device identification string

std::string GpibUsbController::getEoi ( )

....................................................................... Get the EOI state from the controller

std::string GpibUsbController::getEos ( )

....................................................................... Get the EOS state from the controller

std::string GpibUsbController::getHelp ( )

....................................................................... Get the help string from the controller

std::string GpibUsbController::getSelfTest ( )

....................................................................... Query the status of a self test

std::string GpibUsbController::getVersion ( )

....................................................................... Get the version string from the controller

void GpibUsbController::processMsg ( GpibUsbControllerMsg * msg )

protectedvirtual

....................................................................... Main Task event loop: when this is called, the task blocks forever in select(), or until a stop message is received.

Reimplemented from gcp::util::SpawnableTask< GpibUsbControllerMsg >.

void GpibUsbController::readResponse ( )

protected

....................................................................... Read/continue reading a response

void GpibUsbController::resetController ( )

....................................................................... Reset the controller

void GpibUsbController::respondToTimeOut ( )

protected

....................................................................... Respond to a timeout while waiting for a response

void GpibUsbController::respondToUnexpectedInput ( )

protected

....................................................................... Respond to unexpected input from the controller

void GpibUsbController::sendCommand	(	std::string	cmd,
		Receiver	rx,
		bool	expectsResponse = `false`,
		GPIB_RESPONSE_HANDLER *	handler = `0`,
		bool	block = `false`,
		void *	retVal = `0`
	)

protectedvirtual

....................................................................... Send a command

void GpibUsbController::sendControllerCommand	(	std::string	cmd,
		bool	expectsResponse = `false`,
		GPIB_RESPONSE_HANDLER *	handler = `0`,
		bool	block = `false`,
		void *	retVal = `0`
	)

protected

....................................................................... Send a controller command

void GpibUsbController::sendDeviceCommand	(	std::string	cmd,
		bool	expectsResponse = `false`,
		GPIB_RESPONSE_HANDLER *	handler = `0`,
		bool	block = `false`,
		void *	retVal = `0`
	)

protected

....................................................................... Send a device command

void GpibUsbController::serviceMsgQ ( void )

protectedvirtual

....................................................................... Main Task event loop: when this is called, the task blocks forever in select(), or until a stop message is received.

Reimplemented from gcp::util::GenericTask< GpibUsbControllerMsg >.

void GpibUsbController::setAddress ( unsigned address )

virtual

........................................................................ Set the GPIB address of the controller device

void GpibUsbController::setAuto ( bool doAuto )

....................................................................... Set the GPIB controller mode to automatically listen for a response from the GPIB device

void GpibUsbController::suspendProcessingMessages ( bool suspend )

protected

....................................................................... Suspend or resume processing messages

void GpibUsbController::wait ( )

....................................................................... Issue GPIB WAIT command

void GpibUsbController::watchForResponse ( bool watch )

protected

....................................................................... Watch the serial port for a response, and set a timeout

The documentation for this class was generated from the following files:

gcpCbass/util/common/GpibUsbController.h
gcpCbass/util/common/GpibUsbController.cc
