gcp::util::GpibUsbDevice Class Reference

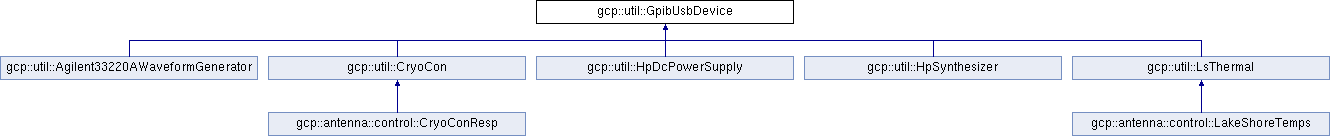

Inheritance diagram for gcp::util::GpibUsbDevice:

Public Member Functions
	GpibUsbDevice (bool doSpawn=false)
	GpibUsbDevice (std::string port, bool doSpawn=false)
	GpibUsbDevice (GpibUsbController &controller)
virtual	~GpibUsbDevice ()
void	setAddress (unsigned address)
unsigned	getAddress ()
void	sendDeviceCommand (std::string cmd, bool expectsResponse=false, GPIB_RESPONSE_HANDLER(*handler)=0, bool block=false, void *retVal=0)
void	sendControllerCommand (std::string cmd, bool expectsResponse=false, GPIB_RESPONSE_HANDLER(*handler)=0, bool block=false, void *retVal=0)
std::string	getDevice ()
GpibUsbController *	controller ()

Constructor & Destructor Documentation

GpibUsbDevice::GpibUsbDevice

(

bool

doSpawn = false

)

....................................................................... Constructors

GpibUsbDevice::~GpibUsbDevice ( )

virtual

....................................................................... Destructor.

Member Function Documentation

unsigned GpibUsbDevice::getAddress

(

)

....................................................................... Return the GPIB network address associated with this device

void GpibUsbDevice::sendControllerCommand	(	std::string	cmd,
		bool	expectsResponse = false,
		GPIB_RESPONSE_HANDLER *	handler = 0,
		bool	block = false,
		void *	retVal = 0
	)

....................................................................... Convenience accessor method to send a controller command

void GpibUsbDevice::sendDeviceCommand	(	std::string	cmd,
		bool	expectsResponse = false,
		GPIB_RESPONSE_HANDLER *	handler = 0,
		bool	block = false,
		void *	retVal = 0
	)

....................................................................... Convenience accessor method to send a device command

void GpibUsbDevice::setAddress

(

unsigned

address

)

....................................................................... Just store the address – don't send to the controller. This will be used in the overloaded sendDeivceCommand() method

---

The documentation for this class was generated from the following files:

• gcpCbass/util/common/GpibUsbDevice.h
• gcpCbass/util/common/GpibUsbDevice.cc
