gcp::antenna::control::OffsetBase Class Reference

#include <OffsetBase.h>

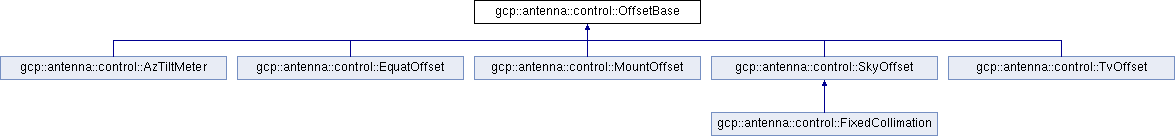

Inheritance diagram for gcp::antenna::control::OffsetBase:

Public Member Functions
	OffsetBase ()
virtual	~OffsetBase ()=0
virtual void	apply (PointingCorrections *f)
virtual void	set (gcp::util::OffsetMsg)
virtual void	set (gcp::util::OffsetMsg, unsigned seq)
virtual void	setAngle (double angle)

Static Public Member Functions
static double	wrapPi (double angle)
static double	wrap2pi (double angle)

Detailed Description

Define a class to encapsulate a variety of offsets

Constructor & Destructor Documentation

OffsetBase::OffsetBase

(

)

Constructor.

....................................................................... Do-nothing constructor and destructor

OffsetBase::~OffsetBase ( )

pure virtual

Pure virtual destructor prevents instantiation of OffsetBase.

Member Function Documentation

void OffsetBase::apply ( PointingCorrections *  f )

virtual

Apply these offsets to the pointing model.

....................................................................... Apply the offsets to the pointing model.

Reimplemented in gcp::antenna::control::SkyOffset, gcp::antenna::control::EquatOffset, and gcp::antenna::control::AzTiltMeter.

void OffsetBase::set ( gcp::util::OffsetMsg  msg )

virtual

Install new offsets received from the control program.

....................................................................... Install new offsets received from the control program.

Reimplemented in gcp::antenna::control::SkyOffset, gcp::antenna::control::EquatOffset, gcp::antenna::control::TvOffset, and gcp::antenna::control::MountOffset.

void OffsetBase::set ( gcp::util::OffsetMsg  msg, unsigned  seq  )

virtual

Install new offsets received from the control program, with sequence number.

....................................................................... Install new offsets received from the control program, with sequence number.

void OffsetBase::setAngle ( double  angle )

virtual

Set an angle.

....................................................................... Set an angle.

Reimplemented in gcp::antenna::control::TvOffset.

double OffsetBase::wrap2pi ( double  angle )

static

Round an angle into the range 0-2.pi.

....................................................................... Round an angle into the range 0-2.pi. Note that fmod() is not used because it was found that the version of fmod() that comes with the 68060 and other Motorola CPU's is implemented as a while loop which takes seconds (!) to finish if the divisor is much smaller than the numerator.

Input: angle double The angle to be rounded (radians).

Output: return double An angle in the range: 0 <= angle < 2.pi.

double OffsetBase::wrapPi ( double  angle )

static

Round an angle into the range -pi..pi.

....................................................................... Round an angle into the range -pi..pi.

Input: angle double The angle to be rounded (radians).

Output: return double An angle in the range: -pi <= angle < pi.

---

The documentation for this class was generated from the following files:

• gcpCbass/antenna/control/cbass/OffsetBase.h
• gcpCbass/antenna/control/cbass/OffsetBase.cc
